OPW Stop-Lok 多用途接头

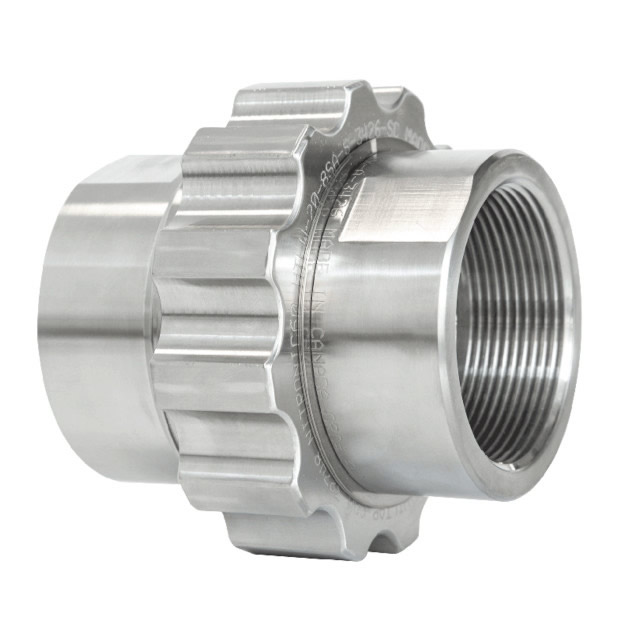

OPW Stop-Lok Multi-Application Coupler

For decades, union and ground-joint fittings have been used to quickly connect pipe and hose, which allows facilities to load and unload product more efficiently. OPW’s Stop-Lok? Multi-Application Coupler builds on the compact structure and efficient functionality of traditional fittings and adds a few learned tricks.
数十年来，联轴器和地面接头一直被用于快速连接管道和软管，这使得设施能够更高效地进行产品装卸。OPW 的 Stop-Lok? 多应用接头在传统接头紧凑的结构和高效功能的基础上进行了改进，并增加了一些实用功能。

Available in 3/4-, 1-, 1-1/2-, 2- and 3-inch sizes, Stop-Lok? couplers are constructed of 316 stainless steel and have an operational temperature range of -20oF to 400oF (-29oC to 204oC).
Stop-Lok? 接头提供 3/4、1、1-1/2、2 和 3 英寸规格，采用 316 不锈钢制造，工作温度范围为 -20oF 至 400oF（-29oC 至 204oC）。

Stop-Lok Multi-Application Coupler Data Sheet OPW Stop-Lok 多用途接头
OPW Stop-Lok Multi-Application Coupler

Features特点

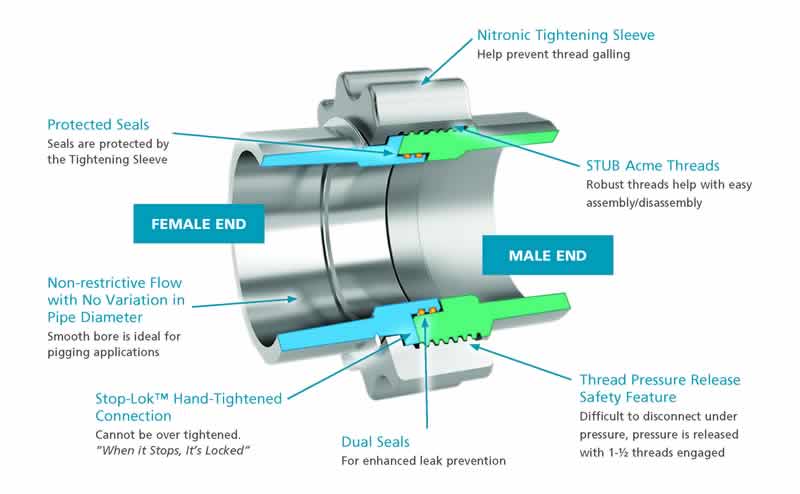

Dual protected O-ring seals provide leak protection and help prevent damage during connection
双重保护的O型圈密封提供防泄漏保护，并有助于防止连接时损坏
Stop-Lok? tool-free, hand-tight connection
Stop-Lok? 无需工具、手动拧紧连接
Engineered for high heat and pressure up to 400 PSI
专为高温和高达400 PSI的压力设计

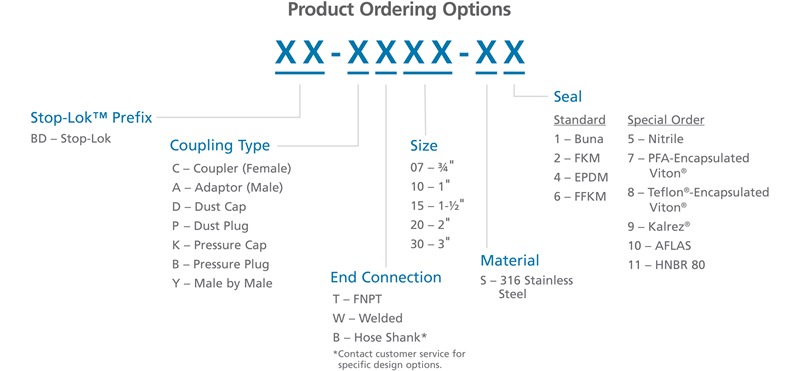

Ordering Guide 订货代码

Downloads Literature

Stop-Lok Multi-Application Coupler Data Sheet
Stop-Lok Multi-Application Coupler Data Sheet (Spanish)
